Every material used in construction, manufacturing, and laboratory research has a specific particle size distribution that directly affects its performance. From the fine cement powder that binds concrete together to the coarse aggregates forming a road base, the grading of particles determines how well a material compacts, drains, and withstands structural loads. Getting this distribution wrong results in weak mixtures, failed quality audits, and costly project delays.
Accurately measuring particle size requires reliable mechanical equipment that can separate materials into distinct fractions based on their diameter. A high-quality sieve shaker automates this separation process, delivering consistent and repeatable results that manual hand-sieving simply cannot match. These machines apply controlled vibration, tapping, or oscillation to a stack of graduated test sieves, ensuring every particle finds its correct position within the grading curve.
Whether you run a soil mechanics laboratory, a pharmaceutical production line, or a mining quality control department, having dependable grading equipment is essential. This guide covers everything you need to know about particle size analysis—from the science behind it to selecting the right equipment and interpreting the results.
Why Particle Size Distribution Matters
The performance of granular materials is governed almost entirely by their grading. A well-graded aggregate blend—one containing a balanced distribution of coarse, medium, and fine particles—packs together tightly, leaving minimal voids. This tight packing directly translates into higher density, greater load-bearing capacity, and improved resistance to water infiltration.
Conversely, a poorly graded material with too many particles of a similar size creates excessive voids. These air pockets weaken the structure and allow water to pass through freely, accelerating erosion and undermining foundations. In asphalt production, incorrect grading leads to rutting under heavy traffic. In concrete, it causes segregation and reduces compressive strength.
Beyond construction, particle grading plays a critical role in industries like pharmaceuticals, where powder fineness affects dissolution rates and bioavailability of drugs. In agriculture, soil particle analysis determines drainage characteristics and nutrient retention capacity. Even in the food industry, the consistency of flour, sugar, and spice grinds depends on precise size classification. For laboratories handling multiple types of material testing, sourcing equipment from a trusted laboratory equipment supplier ensures all grading procedures meet regulatory standards.
The Mechanics of Automated Sieve Analysis

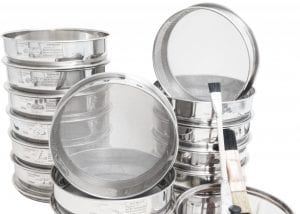

Automated grading machines work by applying mechanical energy to a vertically stacked column of test sieves. Each sieve in the stack has a progressively smaller mesh opening, from the coarsest at the top to the finest at the bottom. A collection pan sits beneath the final sieve to catch the material that passes through every mesh.
The machine generates one or more types of motion to agitate the sample through the stack:
Vibratory Motion
Electromagnetic or motor-driven vibration shakes the entire stack at a high frequency. This rapid oscillation is extremely effective for fine powders and dry materials. The constant micro-movements prevent particles from blinding the mesh openings and ensure thorough separation even at very small aperture sizes.
Tapping Motion
A mechanical arm delivers periodic vertical taps to the top of the sieve stack. This sharp, downward force dislodges particles that have become wedged in the mesh openings—a phenomenon known as “blinding.” Tapping is particularly useful for coarse aggregates and materials with elongated or flat particle shapes that tend to bridge across the apertures.
Combined Motion
Many advanced models combine both vibratory and tapping actions simultaneously. This dual-action approach delivers the most thorough separation across the widest range of particle sizes, from coarse gravel down to fine silt. It significantly reduces testing time while improving the accuracy of each fraction.
Selecting the Right Equipment for Your Application
Choosing the correct grading machine depends on several factors unique to your testing requirements. Making the wrong choice leads to inaccurate data, wasted time, and failed compliance audits.
Sieve Diameter
Test sieves come in standard diameters, typically 200mm (8 inches) or 300mm (12 inches). The machine must accommodate the sieve diameter you use. Larger diameter sieves handle bigger sample volumes and are preferred for coarse aggregates, while smaller ones are suitable for fine powders tested in lower quantities.
Sample Type and Volume
Heavy, coarse materials like crushed stone require robust machines with powerful motors and strong clamping mechanisms. Lightweight fine powders need gentler, high-frequency vibration to prevent material loss through static charge or air currents. Always match the machine’s capacity and motion type to your typical sample characteristics.
Testing Standards Compliance
Different industries follow different standards. Civil engineering typically adheres to BS EN 933-1 or ASTM C136 for aggregate grading. Pharmaceutical applications follow pharmacopoeial standards with much tighter tolerances. Your equipment must be capable of meeting the specific shaking duration, amplitude, and interval requirements mandated by the relevant standard.
Timer and Amplitude Controls
Look for machines with adjustable digital timers and variable amplitude settings. These controls allow operators to fine-tune the shaking intensity and duration for different materials, ensuring optimal separation without damaging delicate mesh wires or the sample itself.
Preparing for an Accurate Test
The accuracy of any grading analysis depends heavily on proper sample preparation and equipment setup. Cutting corners at this stage invalidates the entire test.
Sample Reduction
Field samples are typically far too large to test directly. A representative sub-sample must be obtained using a riffle splitter or quartering method. The sub-sample must accurately represent the overall grading of the bulk material. Scooping from the top of a pile introduces severe bias, as finer particles naturally migrate to the bottom during transport.
Drying the Sample
Moisture causes fine particles to clump together and stick to larger aggregates, distorting the results. Samples should be oven-dried at 105°C to 110°C until they reach a constant mass before testing. This standardized drying temperature removes free water without altering the mineral structure of the particles.
Inspecting the Sieves
Before every test, visually inspect each sieve for torn or distorted mesh, material lodged in the apertures from previous tests, and damage to the frame. Even minor mesh damage can allow oversized particles to pass through, corrupting the data. Sieves should be cleaned with a soft brush—never with sharp instruments that could stretch or tear the delicate wires.
Weighing Equipment
All weighing must be performed on a calibrated balance with sufficient precision. For aggregate testing, a balance accurate to 0.1g is typically adequate. For fine powders, 0.01g precision may be required. Record the initial total mass of the dry sample before placing it on the top sieve. Comparing this to the sum of all retained fractions plus the pan material at the end serves as a critical accuracy check. To explore the full range of precision testing instruments, visiting a dedicated concrete and materials testing equipment page provides access to complementary tools for comprehensive analysis.
Conducting the Test
With the sample prepared and the equipment verified, the testing procedure itself is straightforward but demands careful attention.
1. Stack the Sieves: Arrange the sieves from coarsest mesh at the top to finest at the bottom. Place the collection pan beneath the bottom sieve. Ensure every sieve sits flush and secure within the stack.
2. Load the Sample: Pour the weighed, dried sample onto the top sieve. Spread the material evenly across the mesh surface to prevent overloading one side, which reduces separation efficiency.
3. Secure and Start: Place the lid on top of the stack, mount the assembly onto the machine, and engage the clamping mechanism. Set the timer and amplitude according to the applicable testing standard, then start the machine.
4. Remove and Weigh: Once the shaking cycle is complete, carefully remove each sieve one at a time. Gently tap any remaining material clinging to the underside of the mesh into the sieve below. Weigh the material retained on each sieve and the pan, recording each value to the required precision.
Interpreting the Grading Results
The raw retained weights are converted into percentages to build the grading curve. For each sieve, calculate the percentage of the total sample mass retained on that mesh. Then, calculate the cumulative percentage passing each sieve by subtracting the cumulative retained percentage from 100%.
Plotting the cumulative percentage passing against the sieve aperture size on a semi-logarithmic graph produces the particle size distribution curve. This curve is the primary deliverable of the analysis. It reveals at a glance whether the material is well-graded (a smooth S-shaped curve), uniformly graded (a steep, nearly vertical curve), or gap-graded (a curve with a flat plateau indicating missing intermediate sizes).
Engineers compare this curve against specification envelopes—upper and lower boundary curves defined by the project design. If the material’s grading curve falls entirely within these boundaries, it passes. If it deviates, the material must be rejected, blended with corrective fractions, or re-processed.
Common Testing Errors and How to Avoid Them
Overloading the Sieves: Placing too much material on a single sieve prevents efficient separation. Particles cannot freely move and find the correct aperture. Follow the standard’s guidance on maximum sample mass per sieve diameter.
Insufficient Shaking Duration: Stopping the machine too early leaves particles stranded on sieves they should have passed through. Many standards specify a minimum duration, typically 10 to 15 minutes. Some require the operator to verify that sieving is complete by checking that less than 1% of the retained mass passes through with an additional minute of shaking.
Using Damaged Sieves: Stretched, torn, or clogged meshes produce unreliable data. Implement a sieve management program that includes regular calibration checks using certified reference beads. Replace any sieve that falls outside acceptable tolerance limits.
Ignoring Material Loss: The total mass of all retained fractions plus the pan material should closely match the initial sample mass. A discrepancy greater than 1% typically indicates material loss during handling—particles spilling during transfers, dust escaping, or material stuck inside the machine. Repeating the test is necessary if the loss exceeds the allowable threshold.
Maintaining Your Grading Equipment
Consistent maintenance extends the life of both the machine and the sieves, and it protects data integrity.
Clean After Every Use: Brush all residual material from the sieves and wipe down the machine’s platform and clamping surfaces. Accumulated debris affects the vibration characteristics and clamping pressure.
Lubricate Moving Parts: Follow the manufacturer’s schedule for lubricating bearings, cam mechanisms, and clamping threads. Neglected lubrication increases friction, reduces shaking efficiency, and accelerates wear on critical components.
Calibrate Regularly: The machine’s amplitude and frequency should be verified periodically against the manufacturer’s specifications. Similarly, test sieves should undergo annual calibration using certified glass or metal reference spheres to confirm their aperture sizes remain within tolerance.
Conclusion
Accurate particle size analysis is a non-negotiable requirement across construction, manufacturing, and scientific research. The quality of roads, the strength of concrete, the effectiveness of pharmaceuticals, and the safety of countless other products all depend on precise material grading. Automated shaking equipment removes the subjectivity and physical fatigue associated with manual sieving, delivering faster, more consistent, and fully reproducible results. By selecting the right machine, following standardized procedures, and maintaining the equipment diligently, laboratories and testing facilities can guarantee their grading data is accurate, defensible, and fully compliant with industry standards.
Frequently Asked Questions (FAQs)
1. What is particle size analysis used for?
It determines the distribution of particle sizes within a granular material. This data is critical for designing concrete mixes, road bases, pharmaceutical formulations, and any application where material grading directly affects performance and structural integrity.
2. How does automated shaking improve accuracy over manual sieving?
Automated machines apply a consistent, repeatable force for a precisely controlled duration. Manual sieving introduces variability because different operators apply different levels of force and rhythm, making results inconsistent between tests.
3. What is the difference between vibratory and tapping motion?
Vibratory motion uses high-frequency oscillation ideal for fine powders. Tapping delivers periodic vertical impacts that dislodge particles wedged in the mesh, making it more effective for coarse or irregularly shaped materials.
4. How long should the shaking cycle last?
Most standards specify a minimum duration of 10 to 15 minutes. The adequacy of sieving is often verified by confirming that less than 1% of the retained material passes through with one additional minute of shaking.
5. Why must samples be oven-dried before testing?
Moisture causes fine particles to clump together and adhere to larger aggregates, preventing them from passing through the correct sieve. Oven-drying at 105°C to 110°C removes this moisture without chemically altering the sample.
6. What does a “well-graded” material mean?
A well-graded material contains a balanced distribution of coarse, medium, and fine particles. It packs tightly with minimal voids, resulting in higher density, greater strength, and improved resistance to water penetration.
7. How do I know if my test sieves need replacing?
Sieves should be calibrated annually using certified reference spheres. If the measured aperture sizes fall outside the tolerances specified by the relevant standard, the sieve must be retired and replaced immediately.
8. Can I use the same machine for both fine powders and coarse aggregates?
Many machines accommodate both, especially models with combined vibratory and tapping action. However, you must use the correct sieve diameter and adjust the amplitude and duration settings to suit each specific material type.
9. What causes “blinding” of the sieve mesh?
Blinding occurs when particles of a size very close to the mesh aperture become wedged in the openings, blocking them. Tapping action and proper cleaning after each test are the most effective ways to prevent and address this issue.
10. How much material loss is acceptable during a sieve analysis?
Most standards allow a maximum discrepancy of 1% between the initial sample mass and the total of all retained fractions plus the pan material. If the loss exceeds this threshold, the test should be repeated with a fresh sample.
